Professional · Single head embroidery machine

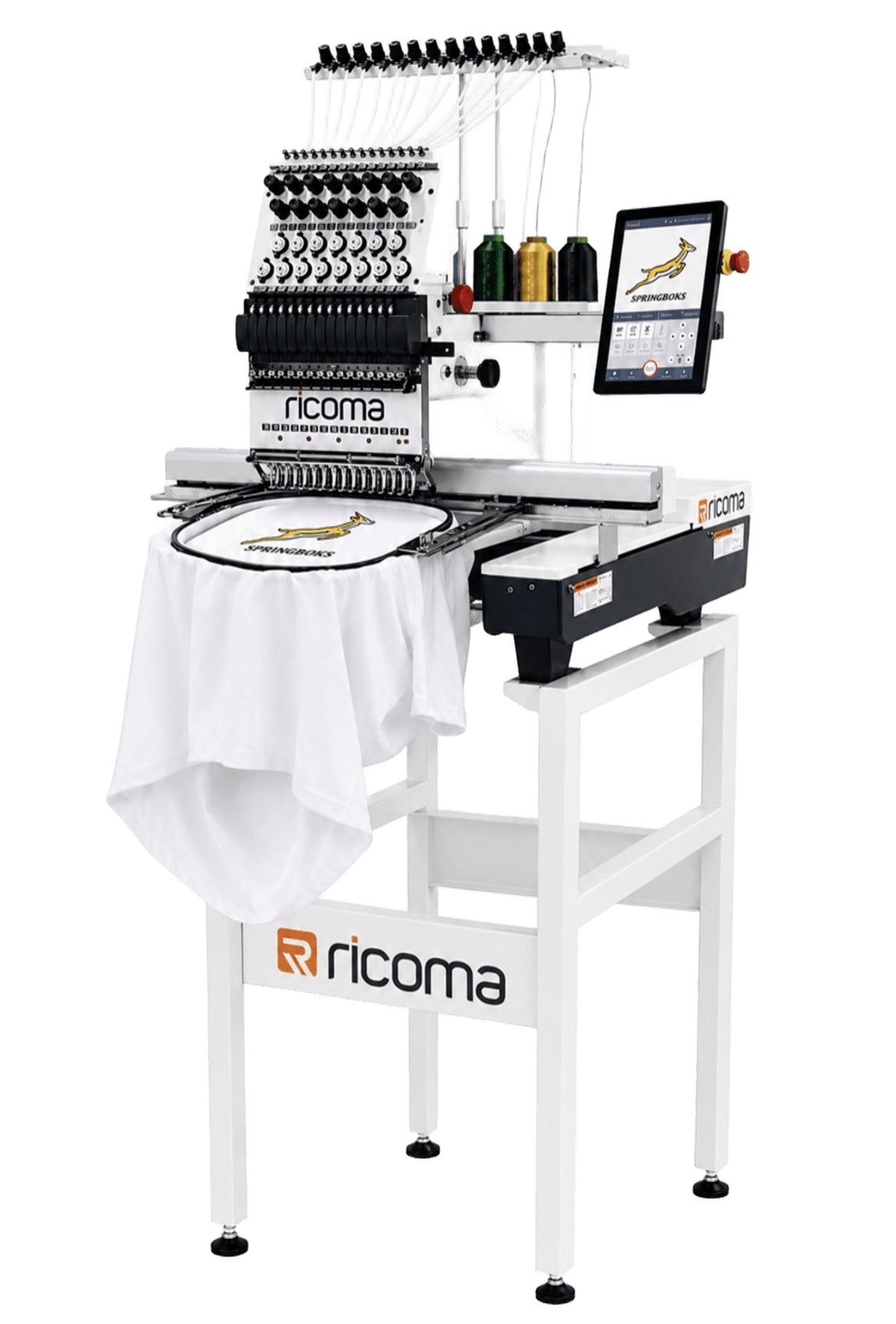

PV-1501 10S Single Head Machine
1 / 15Heads / needles
1,200 SPMMax speed
520 × 350 mmEmbroidery area
120 kgWeight
Overview
Step up to professional-grade embroidery production without the complexity of a multi-head setup. The PV-1501 10S is built for small to medium embroidery businesses that need more speed, more needle positions, and a larger embroidery area — all in a compact single head format.
- 15 needles for more complex multi-colour designs without manual thread changes
- 1,200 SPM maximum speed for faster production runs
- Large 520 × 350 mm embroidery area handles bigger designs and a wider range of garments
- 270° wide angle cap system for full ear-to-ear cap embroidery
- Slim machine width allows easy entry through standard-sized doors
- Universal power supply (90–240V) — works anywhere in the world
Key features
10.1″ HD True-Color LCD Touch Screen
270° wide angle cap system
Automatic thread break detection
Automatic thread trimmer
Frame offset and frame outlining for appliqué
Wi-Fi and LAN design transfer
100 million stitch memory / 1,000 designs
Recessed USB port to protect USB flash drive
Front LED lamp for visibility during threading
Available in 20+ languages
Technical specifications
| Model | PV1501-10S |
| Heads / Needles | 1 head / 15 needles |
| Embroidery area | 520 × 350 mm (20.5 × 13.8 in) |
| Cap rotation | 270° |
| Maximum speed | 1,200 SPM |
| Voltage | 90–240V (self-adapting) |
| Power consumption | 0.2 kW |
| Net weight | 120 kg (264.6 lbs) |
| Machine size (with stand) | 750 × 740 × 1,685 mm |
| Memory capacity | 100 million stitches / 1,000 designs |
| File formats | DST, DSB, TBF and more |
