Commercial · 4 head embroidery machine

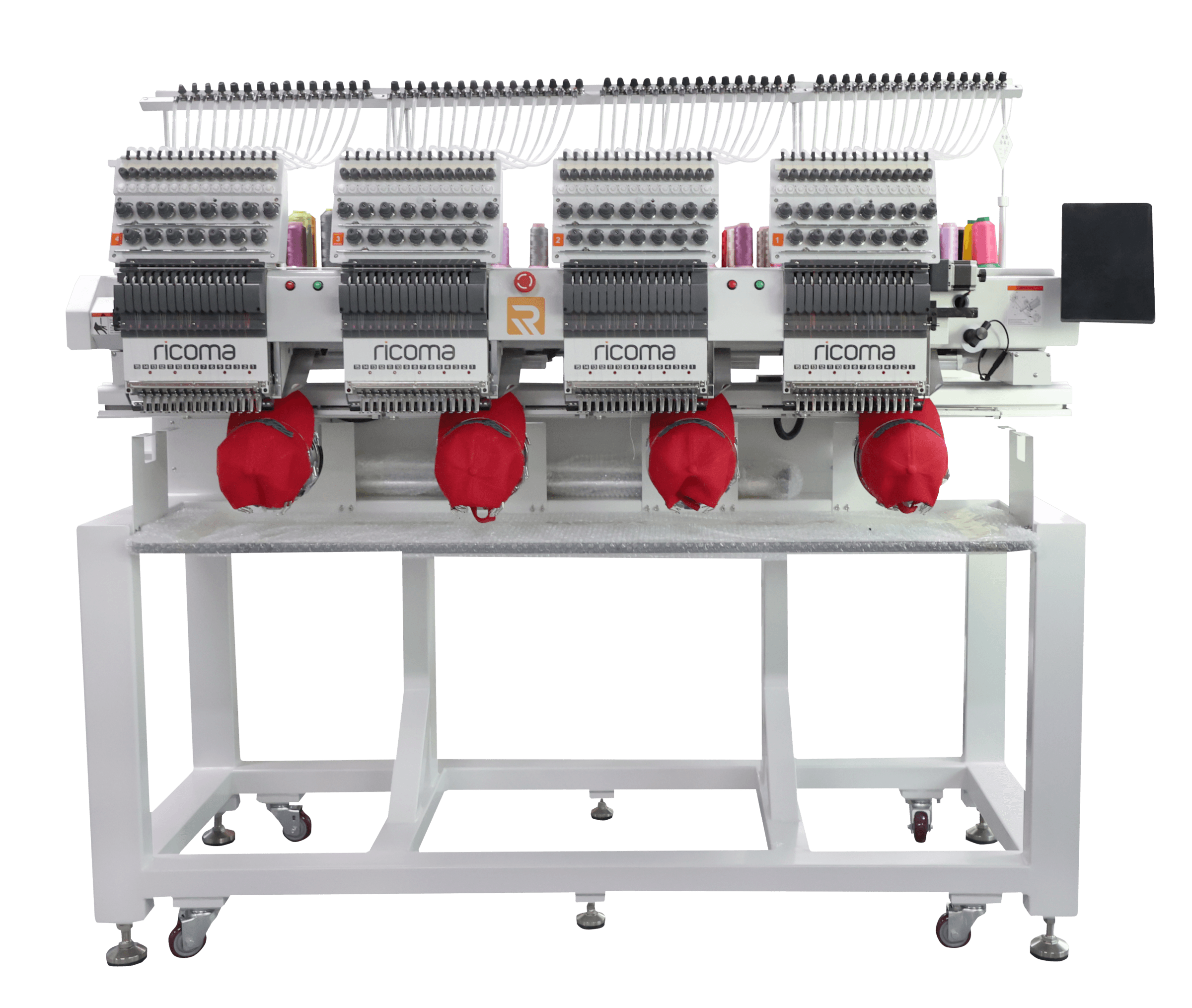

MT-1504 10S 4 Head Machine
4 / 15Heads / needles
1,000 SPMMax speed
400 × 360 mmEmbroidery area
430 kgWeight
Overview
Quadruple your output without quadrupling your labour. The MT-1504 10S is built for high-volume embroidery businesses that need serious production capacity from a single operator. Four heads running simultaneously delivers four times the output of a single head machine, making it the ideal step up for businesses with consistent, growing order volumes.
- 4 heads running simultaneously, four times the output with one operator
- 15 needles per head for complex multi-colour designs without manual thread changes
- 400 × 360 mm embroidery area per head handles a wide range of garments and designs
- 215° cap system for cap embroidery across all four heads
- Wi-Fi and LAN design transfer from a single computer to all heads simultaneously
- Universal power supply (90–240V), works anywhere in the world
Key features
10.1″ HD True-Color LCD Touch Screen
215° cap system
Automatic thread break detection
Automatic thread trimmer
Frame offset and frame outlining for appliqué
Wi-Fi and LAN design transfer
100 million stitch memory / 1,000 designs
Recessed USB port to protect USB flash drive
Stand with wheels for stability and mobility
Available in 20+ languages
Technical specifications
| Model | MT-1504 10S |
| Heads / Needles | 4 heads / 15 needles per head |
| Embroidery area | 400 × 360 mm (15.8 × 14.2 in) |
| Head interval | 400 mm (15.8 in) |
| Cap rotation | 215° |
| Maximum speed | 1,000 SPM |
| Voltage | 90–240V (self-adapting) |
| Power consumption | 0.3 kW |
| Net weight | 430 kg (948 lbs) |
| Machine size (with stand) | 1,910 × 770 × 1,620 mm |
| Memory capacity | 100 million stitches / 1,000 designs |
| File formats | DST, DSB, TBF and more |
